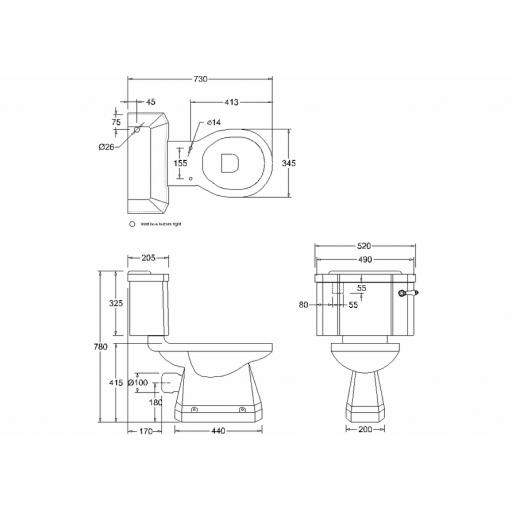

Burlington Rimless close coupled WC with 520 lever cistern
Water Inlet valve hole is located on the base of cistern tank on the right hand side
Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511).
SP511 : Back entry kit for C1/C3/C24, including back entry inlet valve with flexible hose and plug
Dual flush cistern fittings with ceramic lever on the right.
Press lever down for 6 litre flush and up for 3 litre flush.
P trap standard height pan - height from floor to pan rim is 40cm.
Regal Height pan ( floor to pan rim height 48cm ) available : P12
Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26
Metal connection bracket.
Close coupled wc must be used with standard Burlington toilet seats
Supplied with floor fixings.
Recommended to be used with cistern tank isolation valve W25
